Coating Glass Processing Equipment Automatic Adjust Glass Thickness Soft Brushes

Name: Coating Glass Processing Equipment Automatic Adjust Glass Thickness Soft Brushes
Brand: WEILI & WGM
Price: 1 USD

Brand Name : WEILI & WGM

Model Number : LQ2000

Certification : CE, SGS, ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3 set per month

Delivery Time : 20 work days

Packaging Details : Machine packing with plywood pallet and plastic film

Color : Blue and gray

Max Glass Size : 2000mmx2650mm

Min Glass Size : 300X400mm

Washing Glass Thickness : 3~15mm

Washing Glass Speed : 0-8m/Min

Transmission Glass Speed : 45m/Min

Low-E Glass Automatic Diagnosis System : Keyence Brand

Contact Now

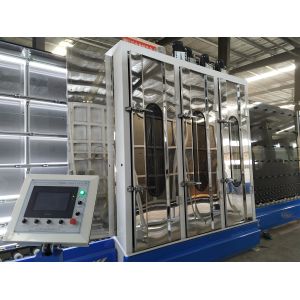

LBW2000PB Vertical Glass washing and drying machine

Function:
The machine has glass feed section, glass washing and drying section, light inspection section.
2. The first section is equipped with LOW-E glass check system. When the coated side is wrongly put, the system will give alarm and the convey will stop automatically.
3.Three pairs of brushes driven separately by 3 motors. Brushes thread are imported soft material, special for LOW-E glass.
4. Washing section uses SKF brand oil-free and water-proof bearings. It will not cause second contamination to glass.
5. Static electricity remove device is equipped at the end of washing section. It can remove the static electricity of the glass so the dust will not fall on the glass.
6. Washing speed is controlled by an inverter.

Technical parameter:

Power supply:	380V 50Hz
Air consumption:	200L/min
Power:	24kW
Max. process glass height	2000*2650mm
Min. process dimension:	300x400mm
Thickness of glass sheet:	3~15mm
Max. process speed:	45m/min

Main Parts Brand

No.	Name	Brand	Original Country or district
1	Low-voltage Electric Elements	Schneider	France
2	Brushes	Soft Nylon Yarn for LOW-E	Joint Venture
3	LOW-E Check System	Omron	Japan
4	Bearing in Washing Section	SKF	Sweden
5	Inverter	Delta	Taiwan
6	Transmission Motor:	Orient drive	Shanghai
7	Hydraulic System	LiTian	Taiwan

Coating Glass Processing Equipment Automatic Adjust Glass Thickness Soft Brushes

Packaging & Shipping

Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.

Warranty time: Usually one year. It is negotiable.
